En este capítulo vamos a añadir espacio al actual Logical Volum (root) del VolumGroup (system) que tiene un total de 53% libre (51Gb)
Vemos el espacio:
[root@RHEL8 tmp]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 953M 0 953M 0% /dev
tmpfs 973M 0 973M 0% /dev/shm
tmpfs 973M 21M 952M 3% /run
tmpfs 973M 0 973M 0% /sys/fs/cgroup
/dev/mapper/system-root 51G 39G 13G 76% /
/dev/sda1 495M 259M 237M 53% /boot
tmpfs 195M 0 195M 0% /run/user/0
Y los discos:
[root@RHEL8 tmp]# fdisk -l | grep Disk | grep bytes
Disk /dev/sda: 30 GiB, 32212254720 bytes, 62914560 sectors
Disk /dev/sdb: 10 GiB, 10737418240 bytes, 20971520 sectors
Disk /dev/sdc: 15 GiB, 16106127360 bytes, 31457280 sectors
Disk /dev/mapper/system-root: 51 GiB, 54723084288 bytes, 106881024 sectors
Disk /dev/mapper/system-swap: 2 GiB, 2181038080 bytes, 4259840 sectors

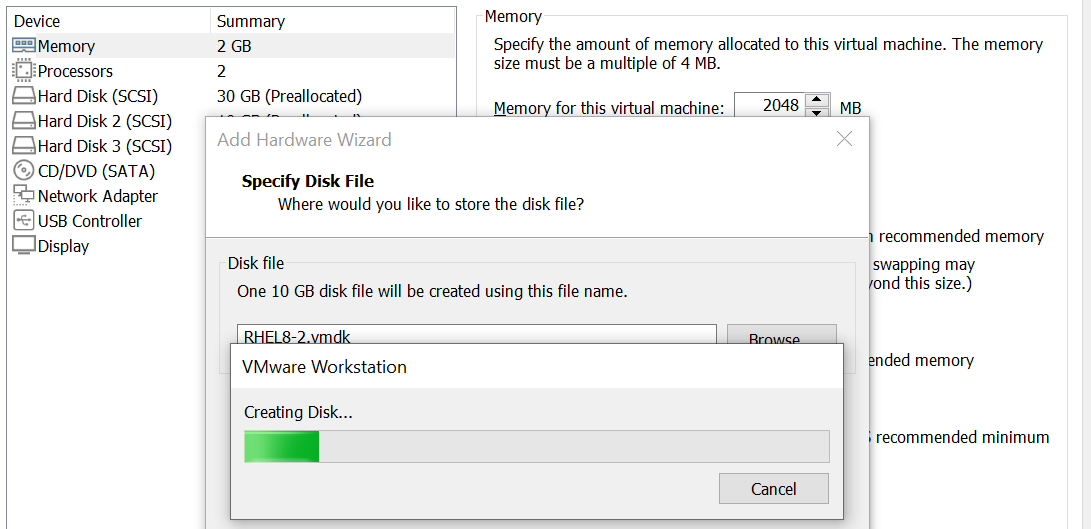

Ahora, añadiremos un nuevo disco. En este caso con VMWare:
En la imagen se aprecia que tenemos 3 discos por lo que si añadimos uno adicional, deberemos de ver un dispositivo nuevo llamado /dev/sdd.
Volvemos a verificar los discos del equipo:
[root@RHEL8 tmp]# fdisk -l | grep Disk | grep bytes
Disk /dev/sda: 30 GiB, 32212254720 bytes, 62914560 sectors
Disk /dev/sdb: 10 GiB, 10737418240 bytes, 20971520 sectors
Disk /dev/sdc: 15 GiB, 16106127360 bytes, 31457280 sectors
Disk /dev/mapper/system-root: 51 GiB, 54723084288 bytes, 106881024 sectors
Disk /dev/mapper/system-swap: 2 GiB, 2181038080 bytes, 4259840 sectors
Oh! El disco no está. Donde está? Bien, el motivo es que hay que hacer un rescan de los discos. Lo haremos con el siguiente comando:
[root@RHEL8 tmp]# ls /sys/class/scsi_host/ | while read host ; do echo "- - -" > /sys/class/scsi_host/$host/scan ; done
Ahora si. Tenemos disco. Ya lo vemos en /dev/sdd y sus respectivos 10 GiB:
[root@RHEL8 tmp]# fdisk -l | grep Disk | grep bytes
Disk /dev/sda: 30 GiB, 32212254720 bytes, 62914560 sectors
Disk /dev/sdb: 10 GiB, 10737418240 bytes, 20971520 sectors
Disk /dev/sdc: 15 GiB, 16106127360 bytes, 31457280 sectors
Disk /dev/mapper/system-root: 51 GiB, 54723084288 bytes, 106881024 sectors
Disk /dev/mapper/system-swap: 2 GiB, 2181038080 bytes, 4259840 sectors
Disk /dev/sdd: 10 GiB, 10737418240 bytes, 20971520 sectors
Ahora crearemos un Physical Volume para /dev/sdd:
[root@RHEL8 tmp]# pvcreate /dev/sdd
Physical volume "/dev/sdd" successfully created.
Extenderemos el VolumGroup (system) ya existente con el dispositivo /dev/sdd:
[root@RHEL8 tmp]# vgextend system /dev/sdd
Volume group "system" successfully extended
Añadiremos todo el espacio del nuevo disco al Logical Volume (root):
[root@RHEL8 tmp]# lvextend -l +100%FREE /dev/system/root
Size of logical volume system/root changed from 50.96 GiB (13047 extents) to 61.95 GiB (15860 extents).
Logical volume system/root successfully resized.
Y una vez añadido, tendremos que forzar su escritura en el sistema de ficheros actual (xfs) para redimensionar su espacio
[root@RHEL8 tmp]# xfs_growfs /dev/system/root
meta-data=/dev/mapper/system-root isize=512 agcount=8, agsize=1767168 blks
= sectsz=512 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=1 bigtime=0 inobtcount=0
data = bsize=4096 blocks=13360128, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=3451, version=2
= sectsz=512 sunit=0 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
data blocks changed from 13360128 to 16240640
Fin. Ahora ya vemos que el Logical Volum (root) del VolumGroup (system) ya tiene 10 Gib, pasando al 63% libre con 62 GiB de espacio total:
[root@RHEL8 tmp]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 953M 0 953M 0% /dev
tmpfs 973M 0 973M 0% /dev/shm
tmpfs 973M 21M 952M 3% /run
tmpfs 973M 0 973M 0% /sys/fs/cgroup
/dev/mapper/system-root 62G 39G 24G 63% /
/dev/sda1 495M 259M 237M 53% /boot
tmpfs 195M 0 195M 0% /run/user/0
